300BPH L Type Washer Filler Capper Machine With Auto Bottle Loading
The filling line specially produces 5 gallon barreled drinking
water.It has the following types:80 type,150 type,300 type,450
type,600 type,900 type.It integrates bottle washer, filler and
sealer into one unit. In order to achieve the purpose of multiple
injections of washing and sterilizing by means of liquid washing
and bleaching are used in bottle washer,washing solution can be
used circularly.The sealer can seal barrel caps are aseptic and
healthy,this line can also automatically carry out
washing,sterilizing,filling, capping, counting and products
discharging.It is a new kind of barreled water auto-producing
line,which integrates mechanism, electricity and pneumatic
technologies together.
working process
Two hot liquid spray washing, one drip drying, two normal
temperature low concentration liquid spray washing, one drip
drying, two recycled water spray washing, one drip drying, two
finished product water spray washing, one drip Drying, in this
process, the outside of the barrel is also sprayed with the spray
head. Through the lifting device, all the spray heads are lifted
up, deep into the empty barrel, and the inside of the barrel is
sprayed and washed. The empty barrel after cleaning is sent to the
filling position through the automatic barrel lowering device, and
the filling is carried out. The overflowed water in the process
will return to the pure water tank to avoid the waste of finished
water. The filled vat is covered and capped by the conveyor chain
in sequence.

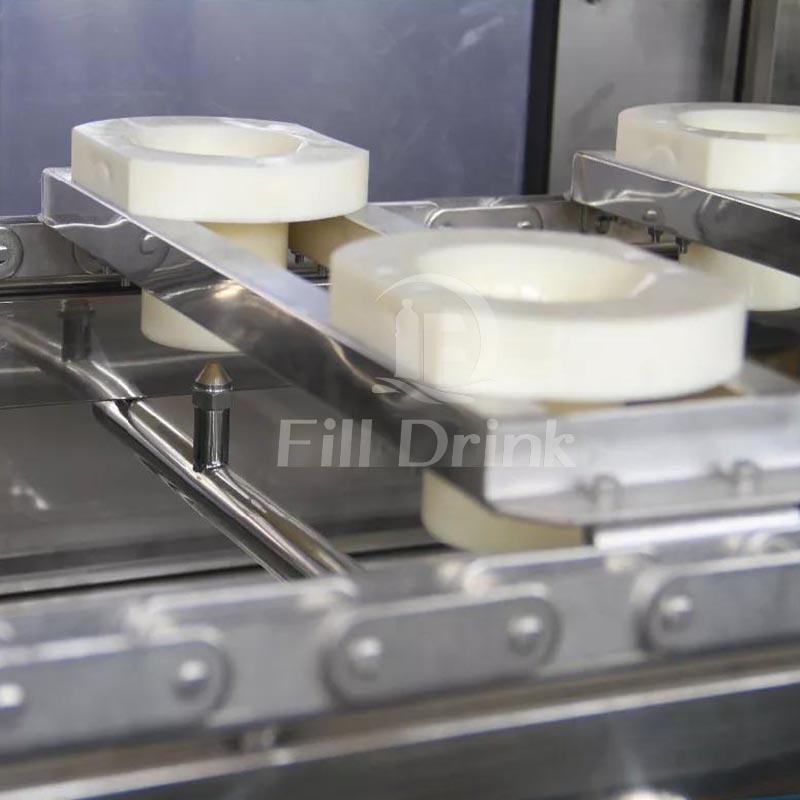

Product Photos:
Product Paramenters:
| Model | QGF-120 | QGF-300 | QGF450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling Head | 1 | 2 | 3 | 4 | 6 | 8 |
| Capacity(barrels/h) | 60-120 | 120-300 | 300-450 | 450-600 | 600-900 | 900-1200 |
| Barrel size(mm) | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption(m3/min) | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Total power(KW) | 1.5 | 3.8 | 5.5 | 7.5 | 9.8 | 13.5 |
| Weight(KG) | 680 | 1500 | 2100 | 3000 | 3500 | 4500 |
Our Service:
The sample service
1. We can send you the video of the running machine.
2. Your are welcome to come to visit our factory,and see the
machine running.
Customized service
1. We can design the machine according your requirements,at the
same time we will give you our prefessional suggestion,as you know
we have been in this industry for many years.
After-sales service
1. We will delivery the machine and provide the bill of load on
time to make sure you can get the machine quickly.
2. When you finish the Preparation conditions,our fast and
professional after-sales service engineer team will go to your
factory to install the machine,give you the operating manual,and
train your employee untill they can operate the machine well.
3. We often ask feedback and offer help to our customer whose
machine have been used in their factory for some time.
4. We provide one year warranty
5. Well-traned & experienced staff are to answer all your inquiries
in English and Chinese.
6. 24 hours for engineer response.
7. 12 Months guarantee and life-long technical support.
8. Your business relationship with us will be confidential to any
third party.
9. Good after-sale service offered, please get back to us if you
got any questions.
Quality Control
We have the single quality department,that make sure the material
of the raw materials is good,and ensure the machine running
smoothly.
